PAPAYA 3D Premium, the world's first budget-friendly, comprehensive CHIROPRACTIC-CBCT Package. We're not just offering a Large FOV CBCT Scanner; we're also including advanced Chiropractic Analysis Software, establishing a new standard in affordability and convenience.

Designed with meticulous precision, the PAPAYA 3D Premium is an ultra-low dose, smart positioning scanner that's remarkably user-friendly. It empowers you to refine your diagnoses/listing with unparalleled accuracy, offering a multitude of Field of View (FOV) options, scaling up to a generous 24cm (wide) x 24cm (tall) for CBCT.

Embrace the future of chiropractic diagnostics with the PAPAYA 3D Premium - a new benchmark in affordability, versatility, and innovation.

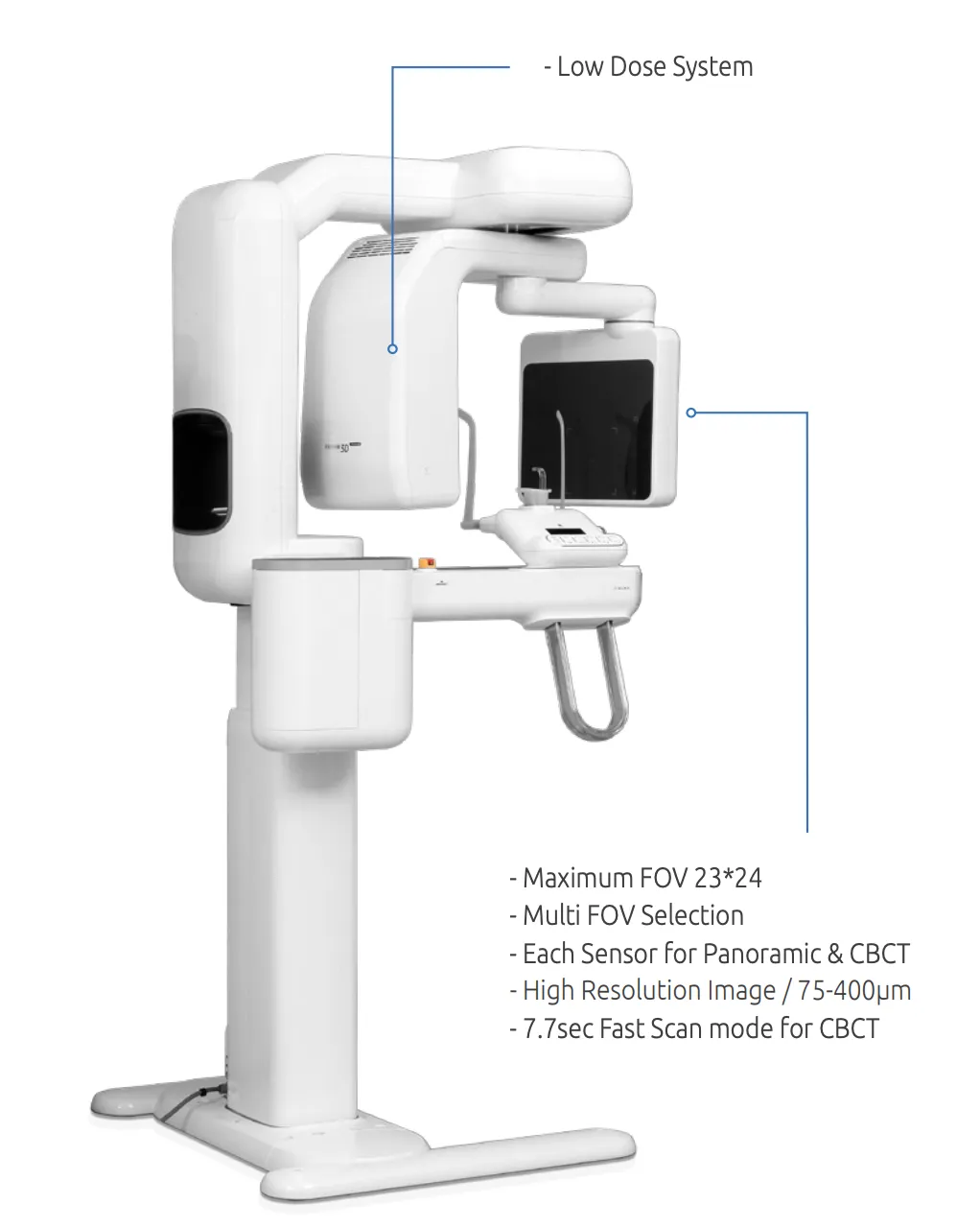

• Maximum FOV 23cm wide x 24cm tall
• Multi FOV Selection - Each Sensor for Panoramic & CBCT
• High Resolution Image / 75-400μm
• 7.7sec Fast Scan mode for CBCT

DIGITAL CBCT DETECTOR

• Digital Image Detector FXDD-0909GA
• Detector Type (Material) TFT / Csi - Detector Size (mm) 261W x 256H x 50D - Active image area (mm) 229.12 x 229.12
• Effective Pixels 1,280 x 1,280 px
• Frame rate 30 fps
• A/D Convert 16bits
• Detector Type (Material) CMOS / Csi
• Detector Size (mm) 167W x 150H x 38D
• Active image area (mm) 130 x 128
• Effective Pixels 1,300 x 1,280 px
• Frame rate 30 fps
• A/D Convert 12bits
• Type = HF Inverter 50 kHz
• kV Range = 60 - 90kV
• mA Range = CBCT 4 - 12mA, Panoramic 4 - 12mA, Cephalometric 4 - 12mA
• Scan/Exposure Time (sec) = CBCT 7.7 - 14.5 (Advanced mode: Max 24), Panoramic - 2 - 17

EXPOSURE MODES

• Patient Option = Big / Middle / Small / Child
• Exposure Resolution = Normal / Fast / HD / Ultra Fast
• Image Resolution = Low Dose / Normal / High Def. / High Res. / Endodontic


COMPUTER WORKSTATION

• CPU = G4400 3.3Ghz
• RAM = 8GB (DDR4 2400)
• HDD = 4TB
• OS = Windows 10 64bit
• Removable Storage = CD/DVD & USB2.0

MONITOR

• Screen 23.8” LED Color Display
• Image Matrix 1,920 x 1,080 Pixels (Full-HD)
• Maximum Brightness 250 cd/m²
• Contrast Ratio 1:1,000

THEIA ACQUISITION SOFTWARE

• Control by Contrast, Brightness, Gamma and Window/Level
• Zooming / Panning
• Measuring the Distance, Angle, Area and Scalar-Profile
• Image Inversion flip and rotation
• Image Processing (Sharpen, Unsharp-mask, Denoising) - Drawing Free-pen, Line, Figure and Text
• Image Comparing (Up to 9 at once)
• Managing Image Mounts and Viewing for each Modalities
• Import Images (Twain, PACS Retrieve, Import)
• Export Images (DICOM Print, PACS Storage, CD Burn, Export)
• Report Template & Print
• DICOM Storage (Send/Receive)
• DICOM Query/Retrieve
• DICOM Print
• DICOM Worklist Management

POWER - ELECTRICAL

• Nominal Line Voltage = AC 100 - 240V
• Input Current = 20A
• Line Frequency = 50/60Hz
• Phase =Single Phase


DIMENSIONS

• Weight: 163kg ± 5%
• Dimension: 1,203(W) x 1,379(D) x 2,386(H) mm

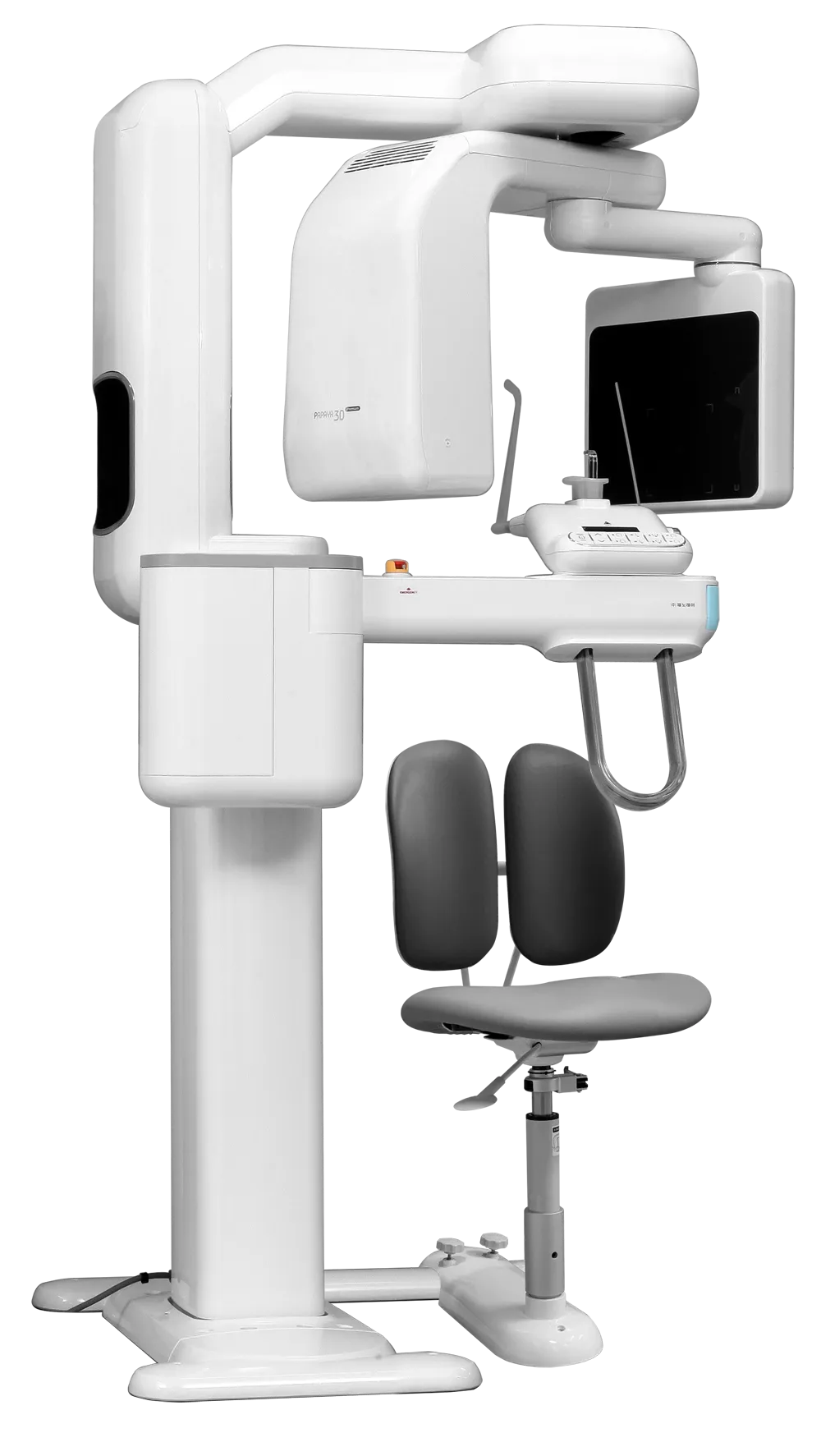

** PATIENT CHAIR **

-Comes with Patient Chair as part of this package. The Chair creates extra comfort for the patient as well as minimizes any patient movement during the scan.

WARRANTY
- 5 Years Parts Warranty
CBCT SOFTWARE SUITE
Non FDA Approved CBCT TOOLKIT - For Reference Only

Digital Overlay :
The UC Toolkit is designed as a digital overlay software for the
Orthogonal Upper Cervical Doctor. Since it is simply allows you to
measure landmarks on your screen, it can be used with any viewing
software. It can also be used to quickly analyze X-ray, CBCT, or MRI.

Analysis :
First, the image is manipulated within the Theia viewing software. Align
the image until the proper field of view is achieved. Next, the toolkit
overlay is activated. The UC Toolkit condenses all the commonly used
tools into one platform. This includes horizontal and vertical angles,
protractor, center point, C/A calculation, main calculations calculator,
show misalignment, text, freehand, transparent, and snip.
