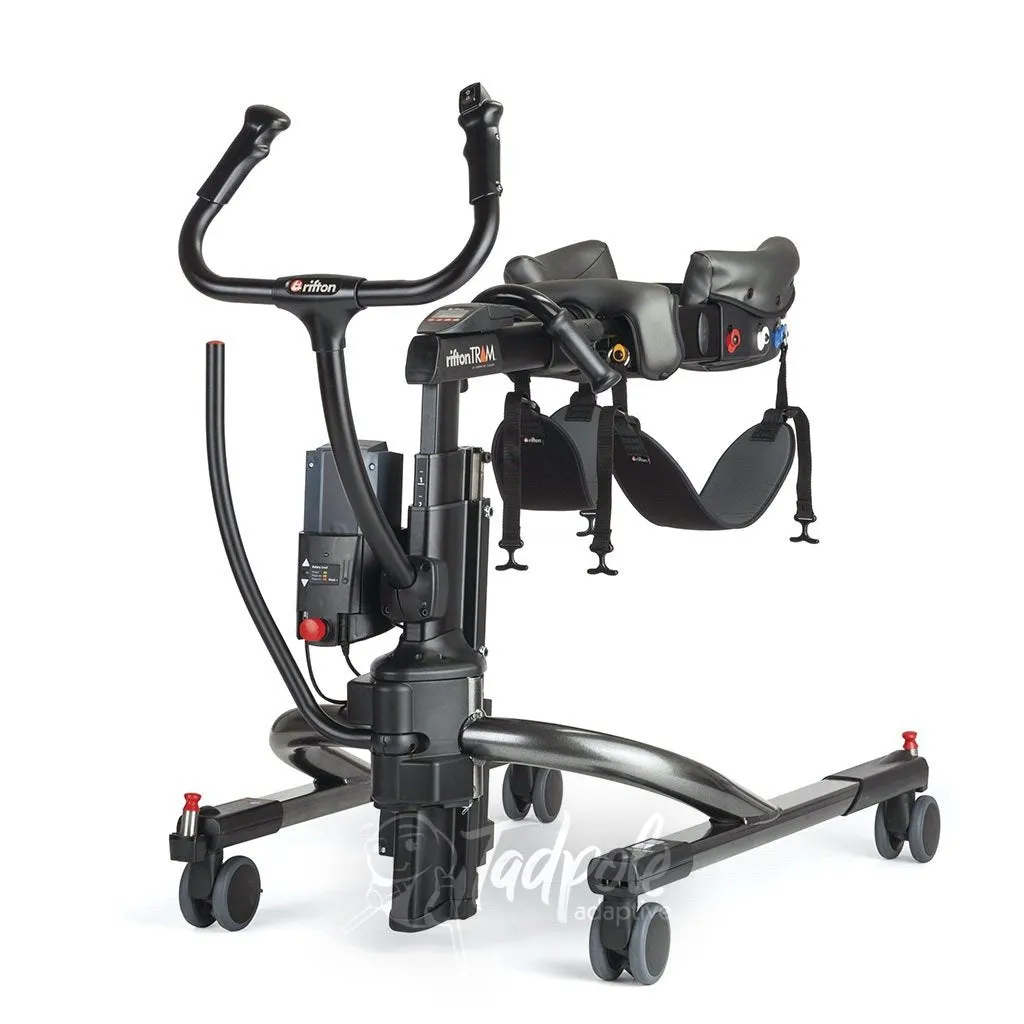

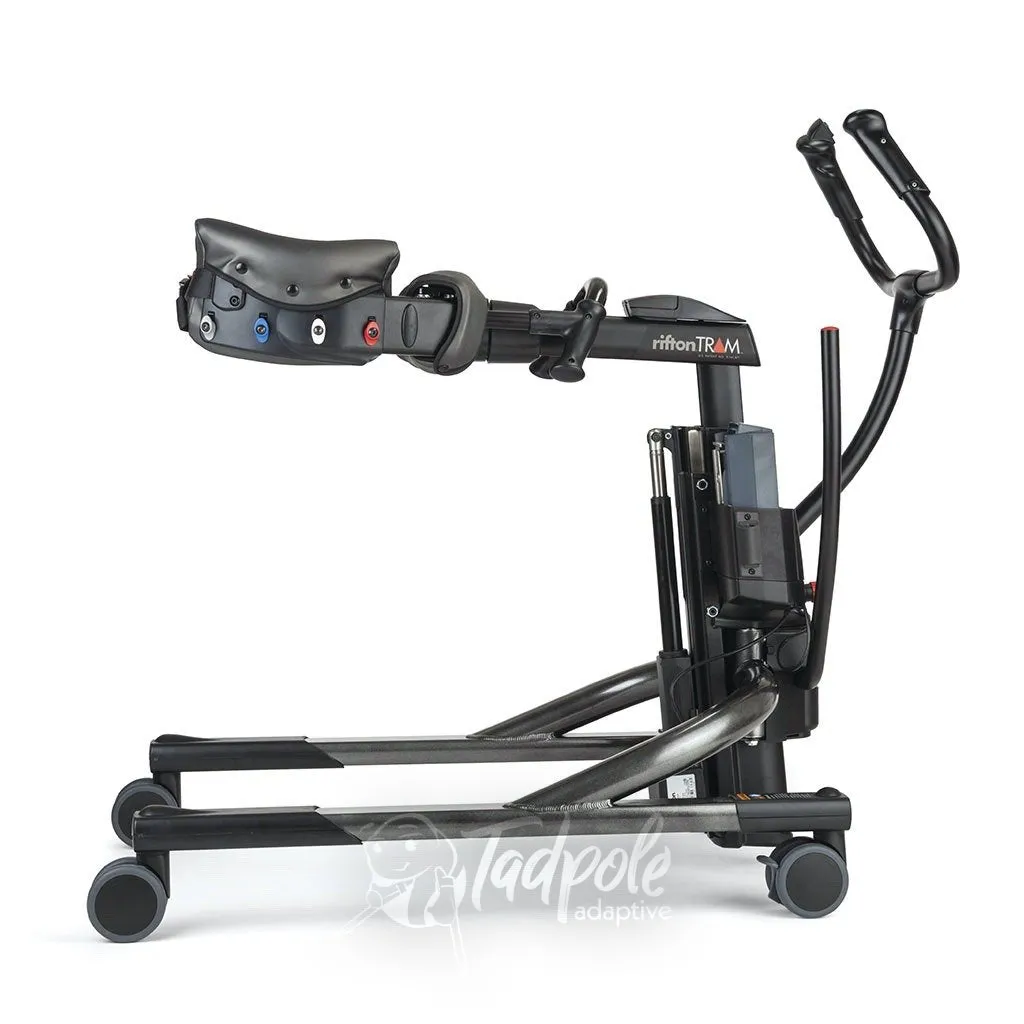

Name: Rifton TRAM (Transfer & Mobility)
SKU: 98295

The Rifton TRAM (Transfer and Mobility) device is a multifunctional tool crafted to enhance neuroplasticity through gait training, sit-to-stand, and seated transfers, all combined into one streamlined machine. Ideal for active families, the Rifton TRAM boasts an innovative design that facilitates single-person transfers, enhancing efficiency and safety in various settings. This makes it a reliable choice for caregivers, providing peace of mind when assisting loved ones.

The Rifton TRAM supports safe ambulation and mobility. It enables users to easily perform transfers, practice sit-to-stand movements, and refine gait techniques without the risk of injury to either children or caregivers. Its unique design features intuitive harness and grasp technology, ensuring enhanced security and ease of use.

Features

*Shown with options and accessories

Body Support

The TRAM incorporates an innovative support system that utilizes two back belts with safety buckles to secure the user.

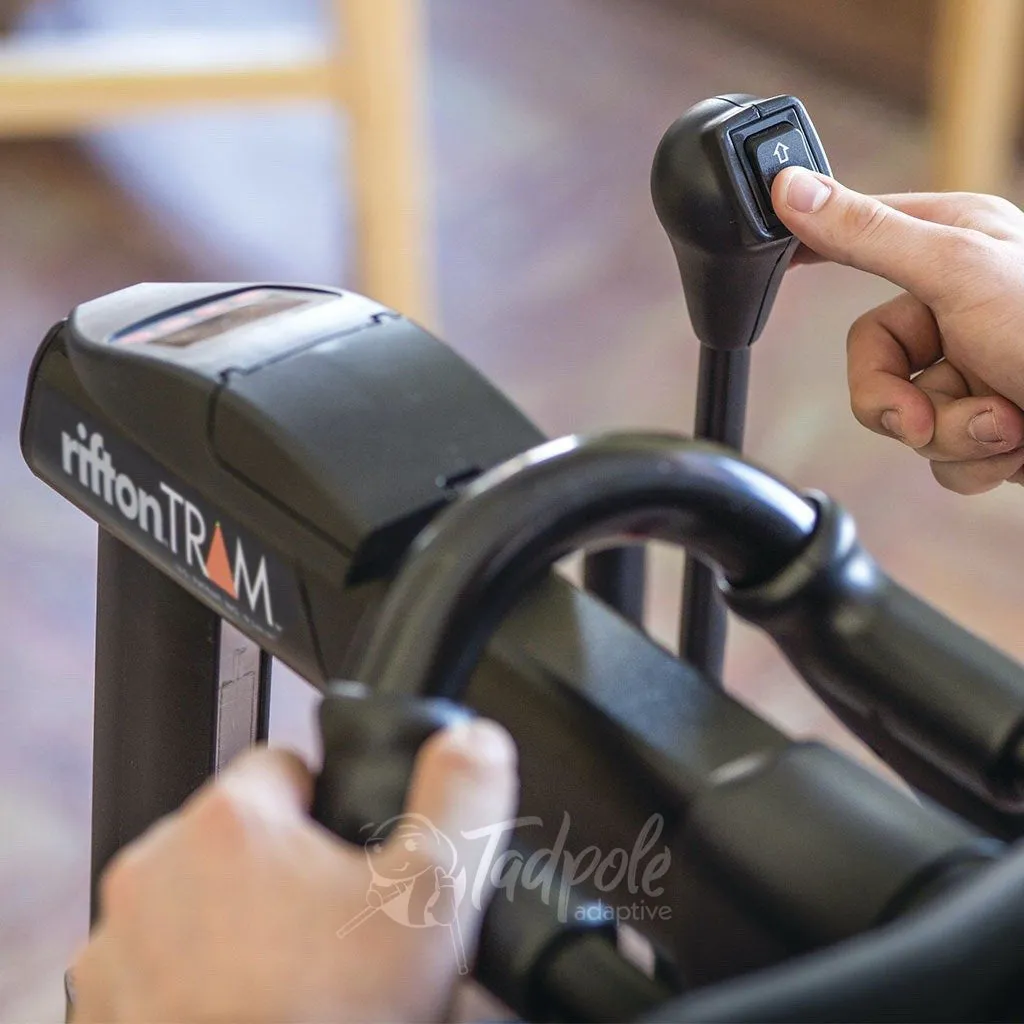

Built-In Up/Down Switch

The TRAM's height can be easily adjusted with a single button on the right steering handle.

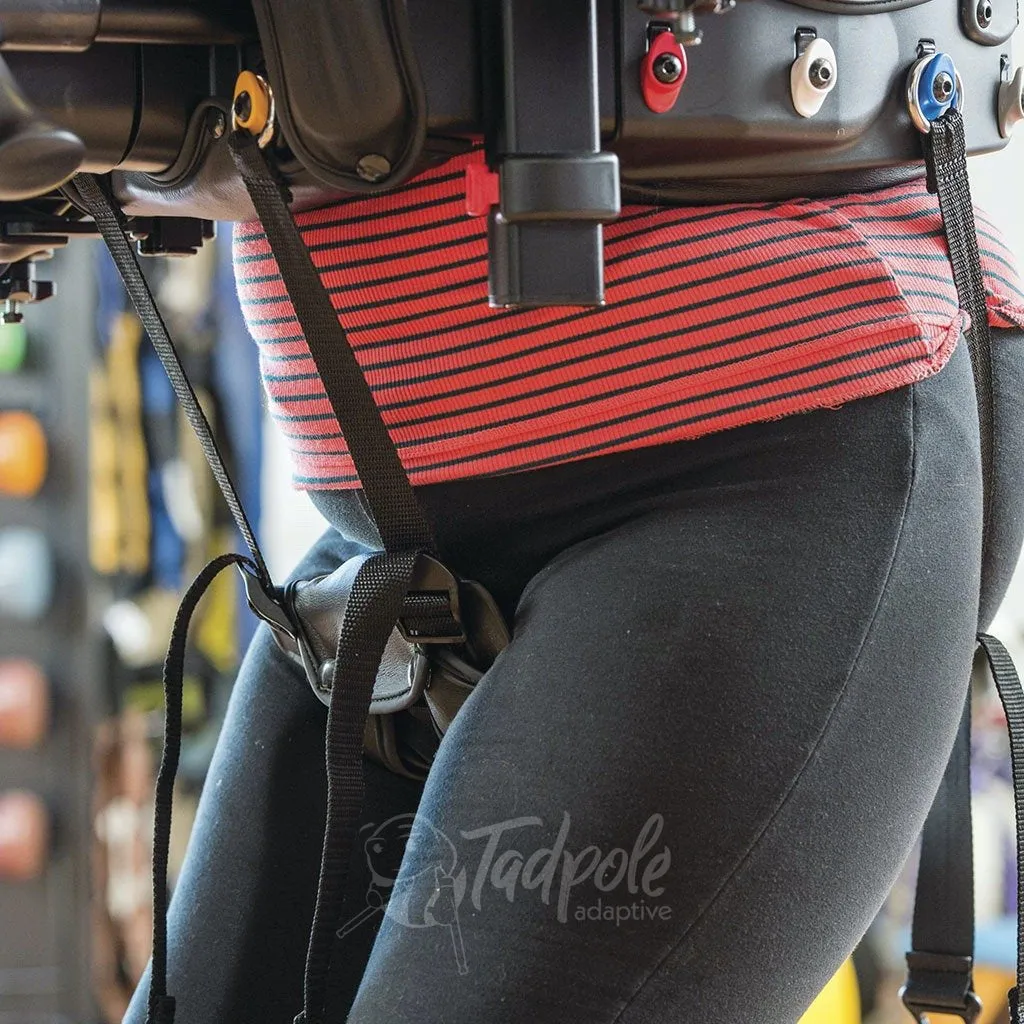

Color-Coded Clips

Caregivers can swiftly attach metal rings to one of the four clips on the TRAM.

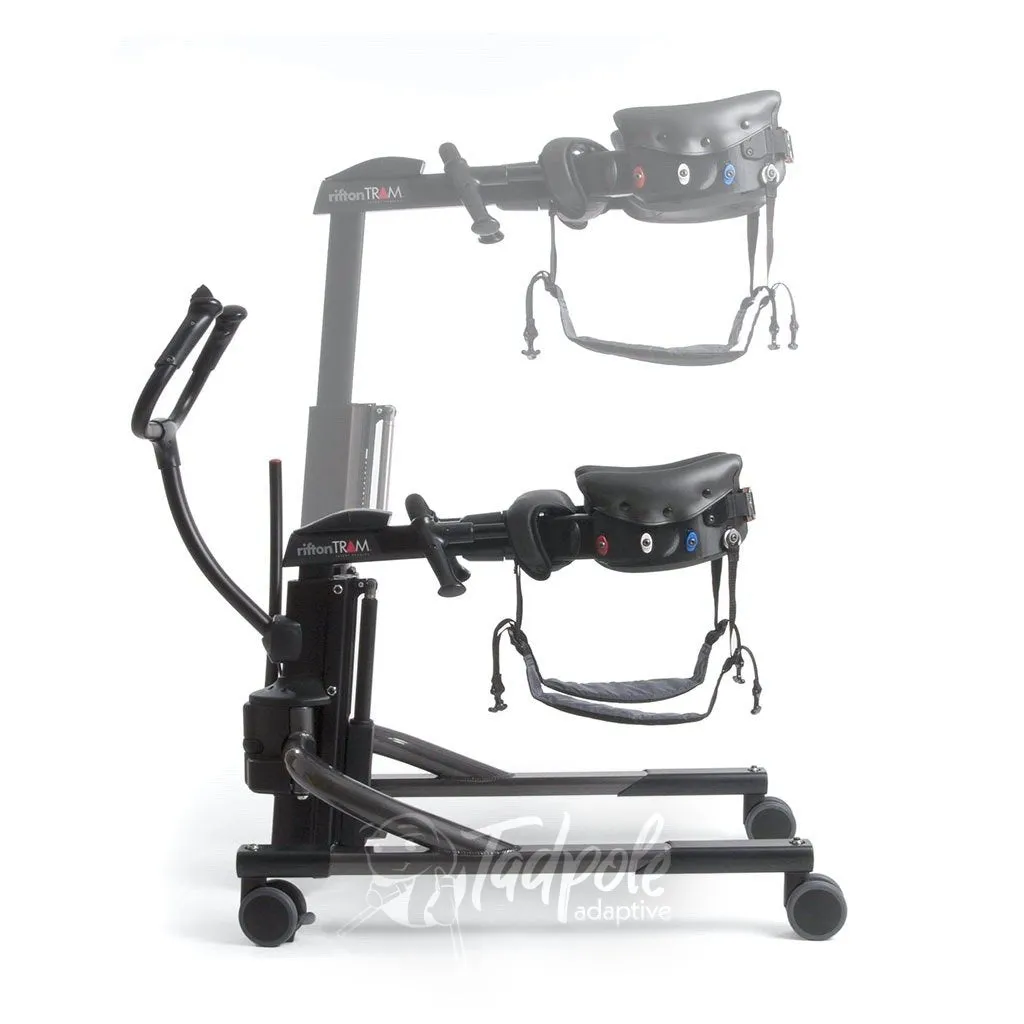

Three-Stage Riser

The TRAM features a three-stage riser, allowing it to extend high enough to support a user up to 6'4" tall for walking, and then compact down to 43½" for storage.

Three Powerful Functions in One Device

1. Gait Training

With the switch pole installed, the front handle can be removed to enhance a user's independence and environmental access. The TRAM provides safe, supported ambulation with its pelvic support, ideal for both home and institutional settings.

2. Sit-to-stand Transfers

Sit-to-Stand for Health. The ability to move between sitting and standing is essential for a user's independence and health. The TRAM's pelvic su

3. Seated Transfers

The TRAM's low profile, along with its comfortable body support and thigh straps, provides users with security and dignity, allowing unobstructed eye contact with caregivers and surroundings during seated transfers.

The Benefits

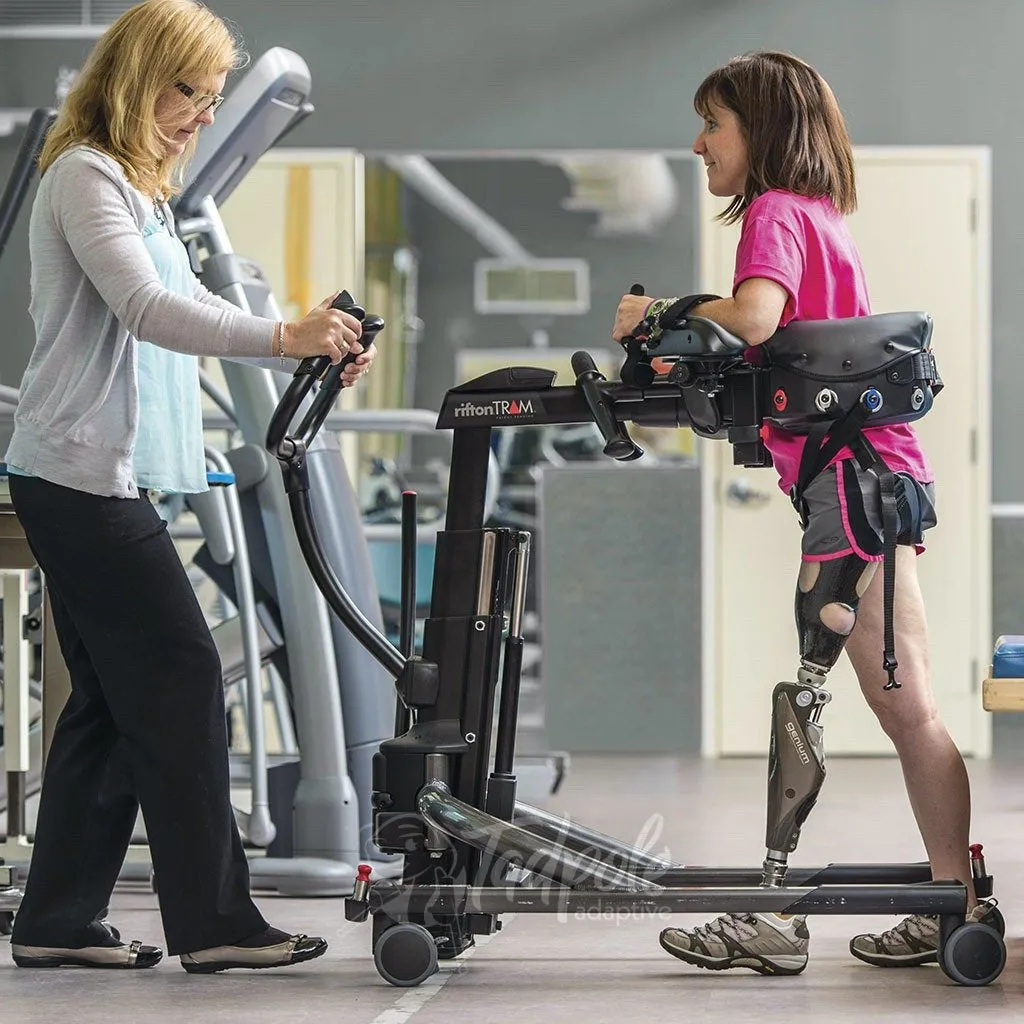

A rehabilitation patient with a bionic leg utilizes the Rifton TRAM to reclaim motor skills after a traumatic accident.

Ultralight Compact Frame
The frame is easy to maneuver in tight spaces, making it ideal for use in various settings.

Intuitive Controls and Adjustments
These features simplify operation, allowing a single caregiver to manage the device effectively.

No-Lift Body Support System
This system alleviates the need for caregivers to lift patients, reducing back strain and the risk of workplace injuries.

High Weight Capacity and Efficient Battery
The TRAM can support up to 350 lbs and performs over 70 lifts on a single charge, thanks to its powerful battery drive.

Optional Built-in Scale
This feature enables caregivers to weigh users during routine transfers, enhancing the monitoring of the patient's progress.

Patented Support System
The TRAM's support system uses dual back belts with safety buckles, facilitating quick and secure preparations for safe transfers.

Weighing just over 70 lbs, the TRAM's frame is not only lightweight and portable but also easy to store. Its design is quickly adaptable for use by multiple caregivers, offering a smarter, safer work environment that significantly reduces physical strain.

The Rifton Tricycle can be configured for maximum support (above), or with minimal prompts (left), for freedom of movement and uncluttered appearance.

The laterals and handlebar swing away for easy transfers.The seat glides up and down on a low-friction rail. This rider pushes with his feet to
help his caregiver raise the seat.

Remove rear wheels and front end, and flip down the backrest for easy transport.

Which Size is Right for You?

User Dimensions - Inches	K310	K3200
Girth	22 min – 60 max	22 min – 60 max
	Key User Dimension: Girth Important: User’s weight or height must not exceed: 350 lb or 76 inches
Max. working load (lb)	350 lb	350 lb
Overall Length	45½"	45½"

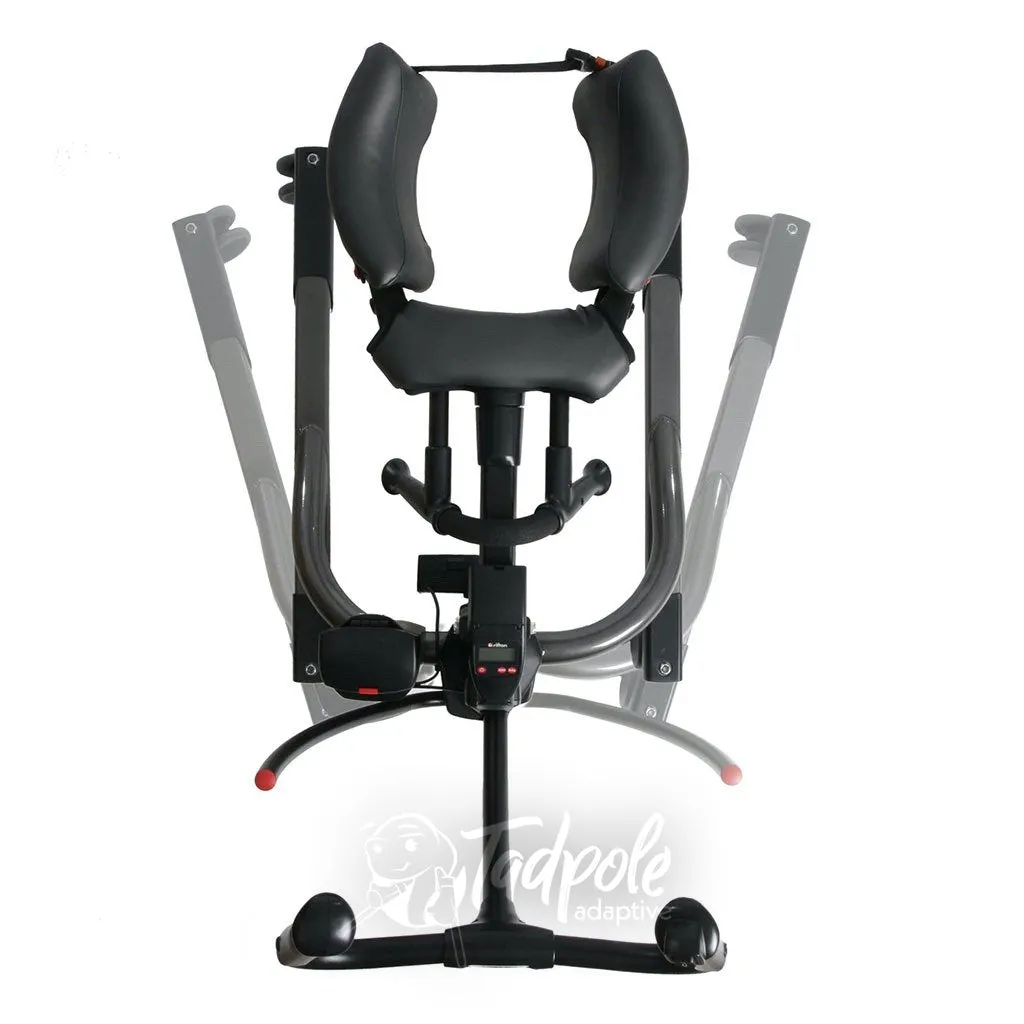

Overall Width	27½" – 40"	27½" – 40"
Overall Height	43½" – 58"	43½" – 58"
TRAM weight (lbs)	70 lb	70 lb
Turning Diameter	50"	50"
Floor to top of base leg for furniture clearance	6¾"	4¼"
Min. user armpit height (when standing or ambulating)	30½"	30½"
Max. user height (when standing or ambulating)	76"	76"

Accessories & Options

Thigh Straps

Thigh straps facilitate seated transfers. They are machine washable and available in narrow and wide styles to suit different user needs. Width: narrow 5", wide 7"

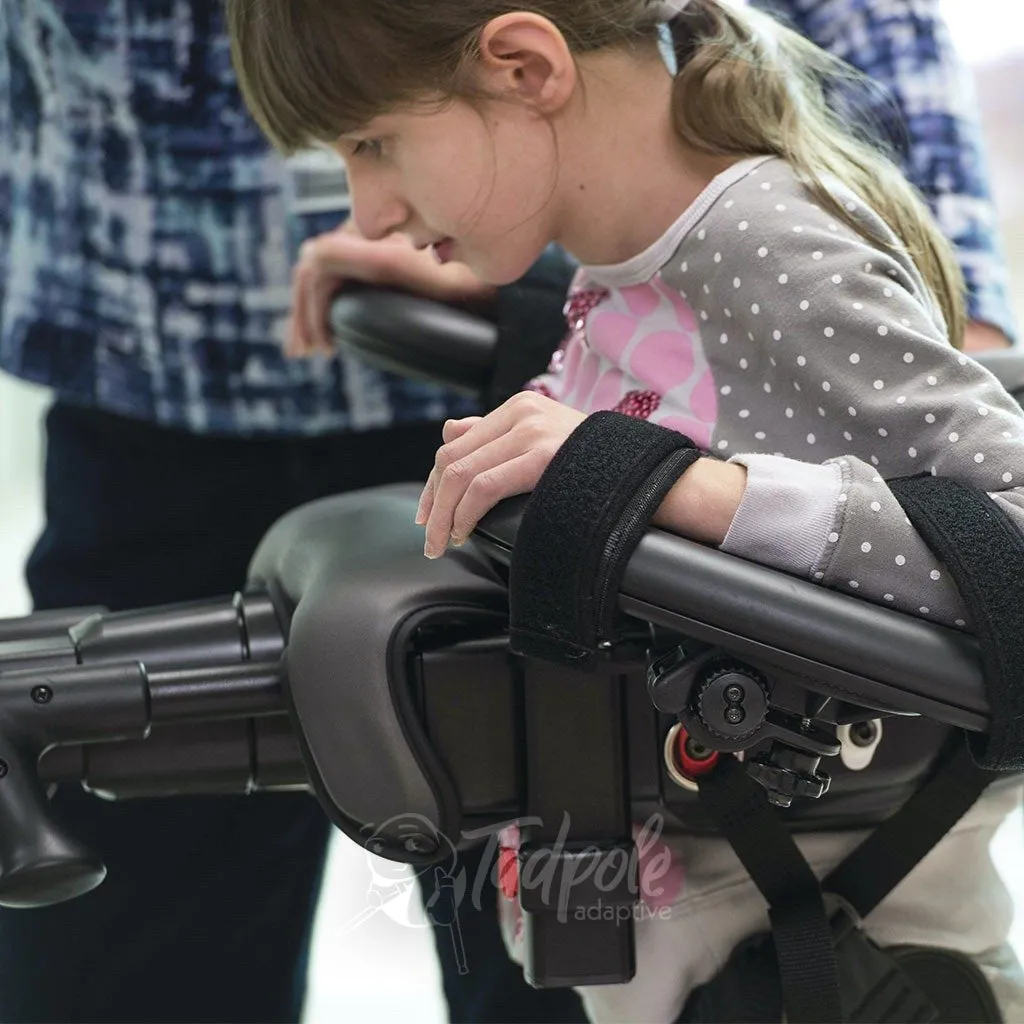

Arm Prompts

Arm prompts offer adjustable height, rotation, angle, lateral proximity, and forward/backward positioning to meet diverse user requirements. Adjustment range (elbow to fist): small 9"– 12½", large 10½"–15". Padded surface area small 4½"x 8" large 5"x 9"

Arm Platforms

Arm platforms provide a straightforward support alternative for users requiring minimal positioning adjustments. They are made from closed-cell molded foam, ensuring padded comfort and ease of maintenance. Padded surface dimensions: 13½"x 5½"

Swivel Locks

Swivel locks ensure the TRAM moves in a straight line. These locks can be applied to any of the four casters, with just two sufficing for straight movement. When unlocked, the casters can swivel to navigate tight spaces.

Hip Positioner

The hip positioner promotes optimal positioning for gait training, facilitating natural pelvic movement and lower extremity weight-shifting, while providing good abduction. An optional pad adds extra comfort.

Pelvic Support

Pelvic support is available in three sizes and is essential for sit-to-stand transfers and gait training. It also helps prevent falls, enhancing safety during early mobility phases. Best fit is achieved when straps are crossed as displayed.

Switch Pole

The switch pole allows caregivers to operate the electric lift without the need to bend down. It can be reversed to allow users to control the lift themselves, providing greater independence.

Integrated Scale

Weigh users during routine transfers or assess their weight-bearing during gait training. The scale, when connected to a tablet or phone via Bluetooth, syncs with Rifton’s Gait Tracker app to monitor weight-bearing progress.

Note: The scale must be included in the original purchase as it cannot be added later.
