LIGHTFORCE RHINO RACK ™ SINGLE ROW LIGHT BAR UNIVERSAL MOUNTING BRACKET KIT

Lightforce Rhino Rack™ single row Light Bar Universal Mounting Bracket Kit is ideal for mounting your Light Bar “underneath” series 4 & 5 Rhino Rack™ Pioneer platforms.

Made from 3mm stainless steel and finished in UV stable powder coat, the factory styled brackets are ideal for the harsh Australian outback.

KEY FEATURES

• Single piece design

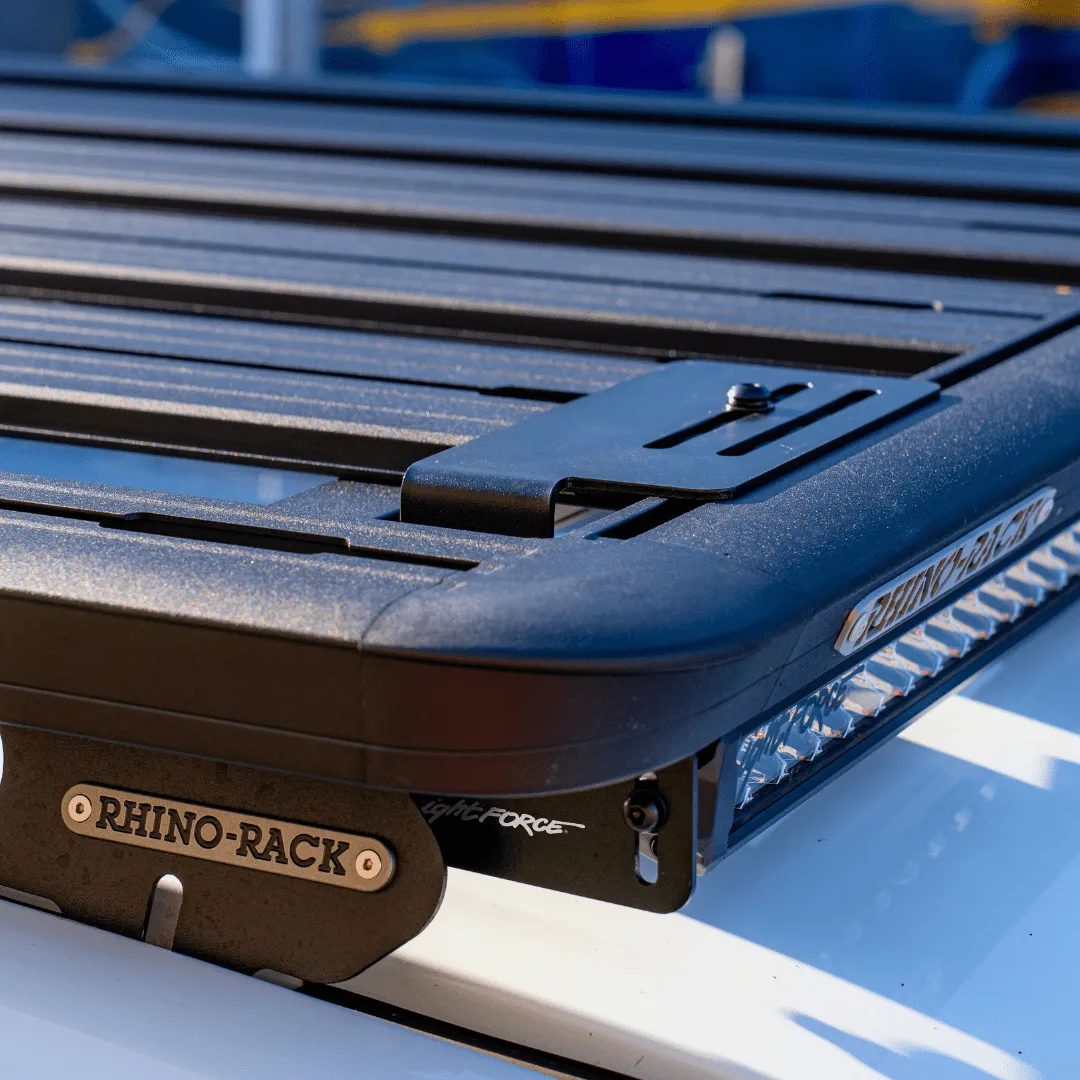

• Slotted side mounting points for complete height optimisation

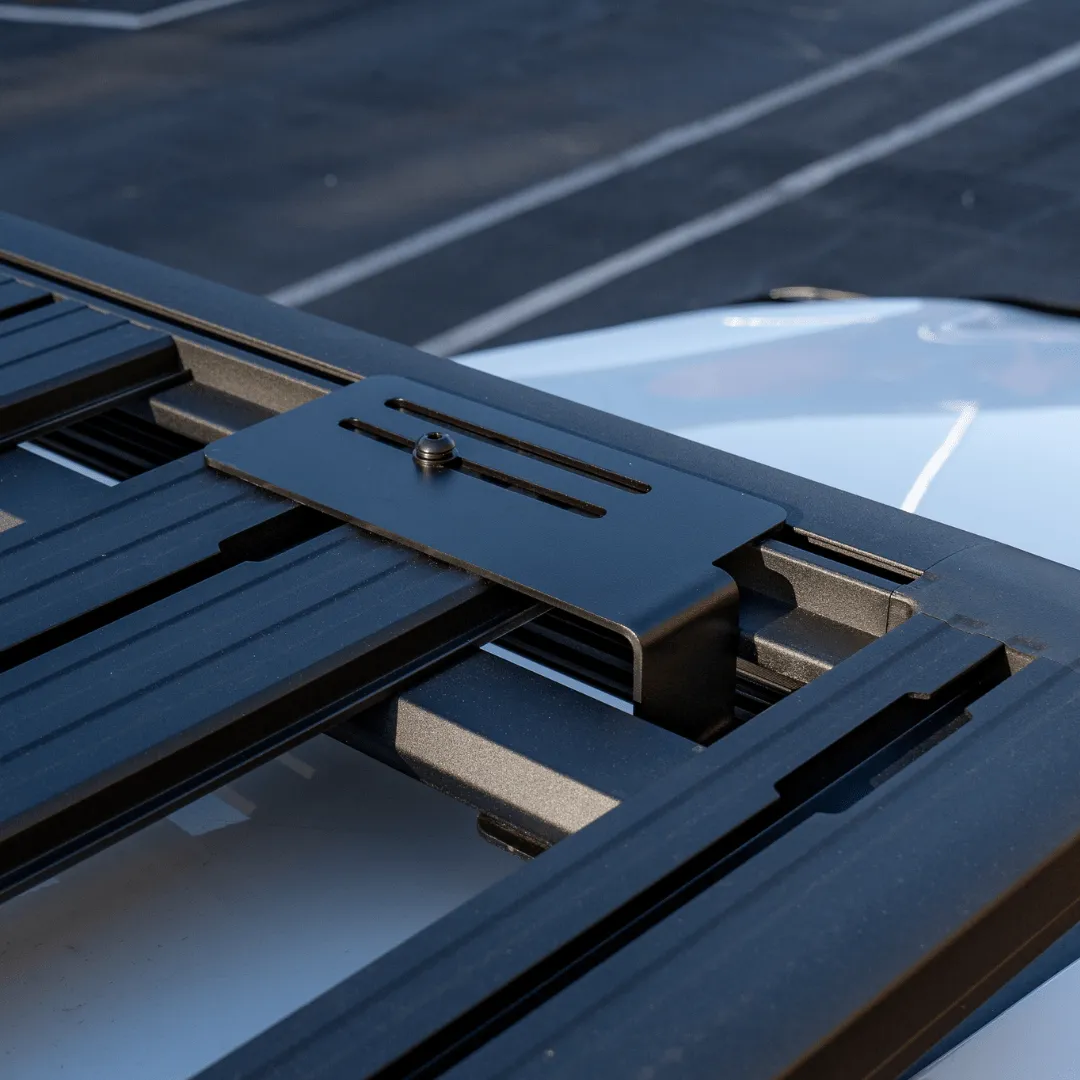

• Forward and backward platform channel adjustment

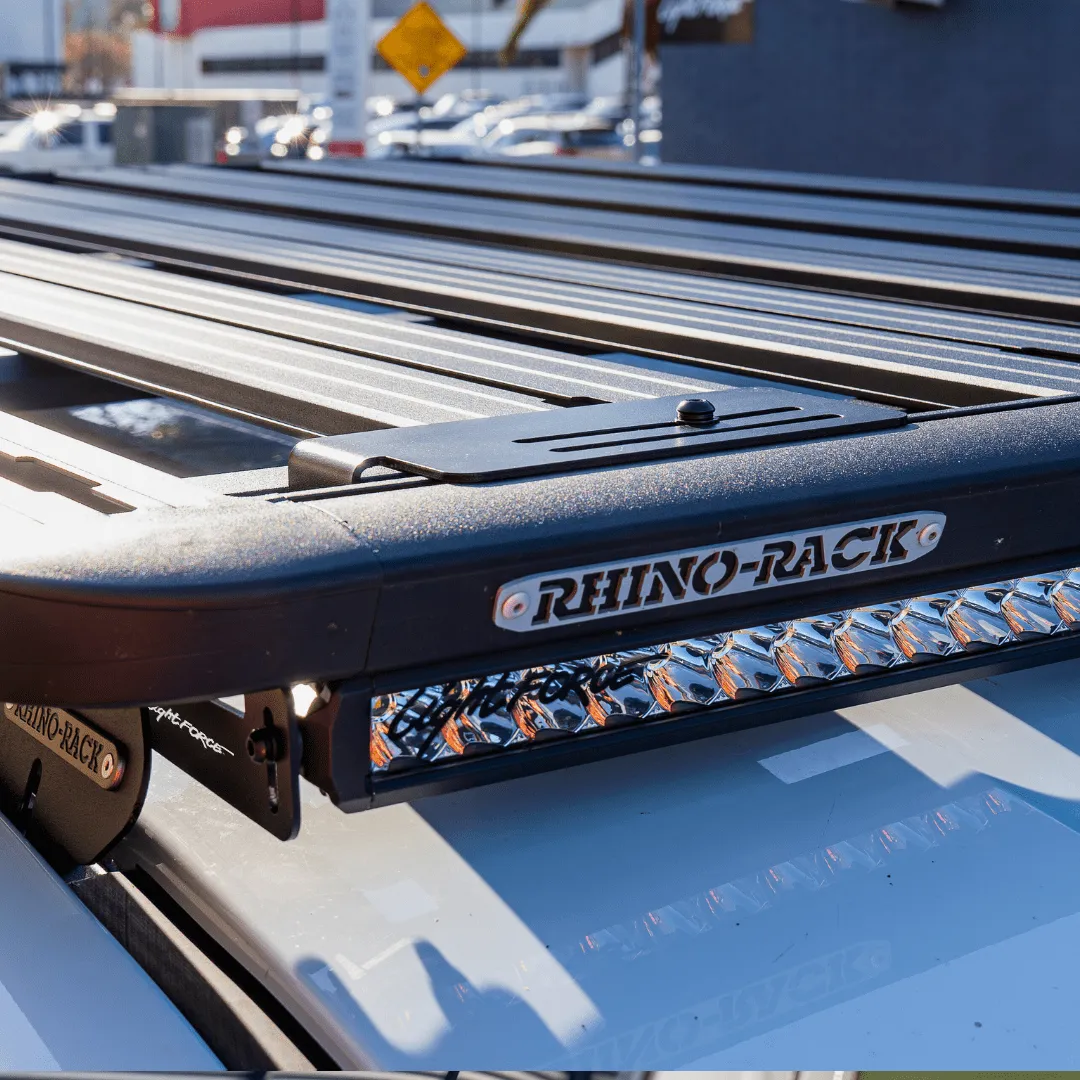

• Mounts the Light Bar below the chosen platform
• Matched black finish to most Rhino Rack™ platforms
• Complete fixings kit included.

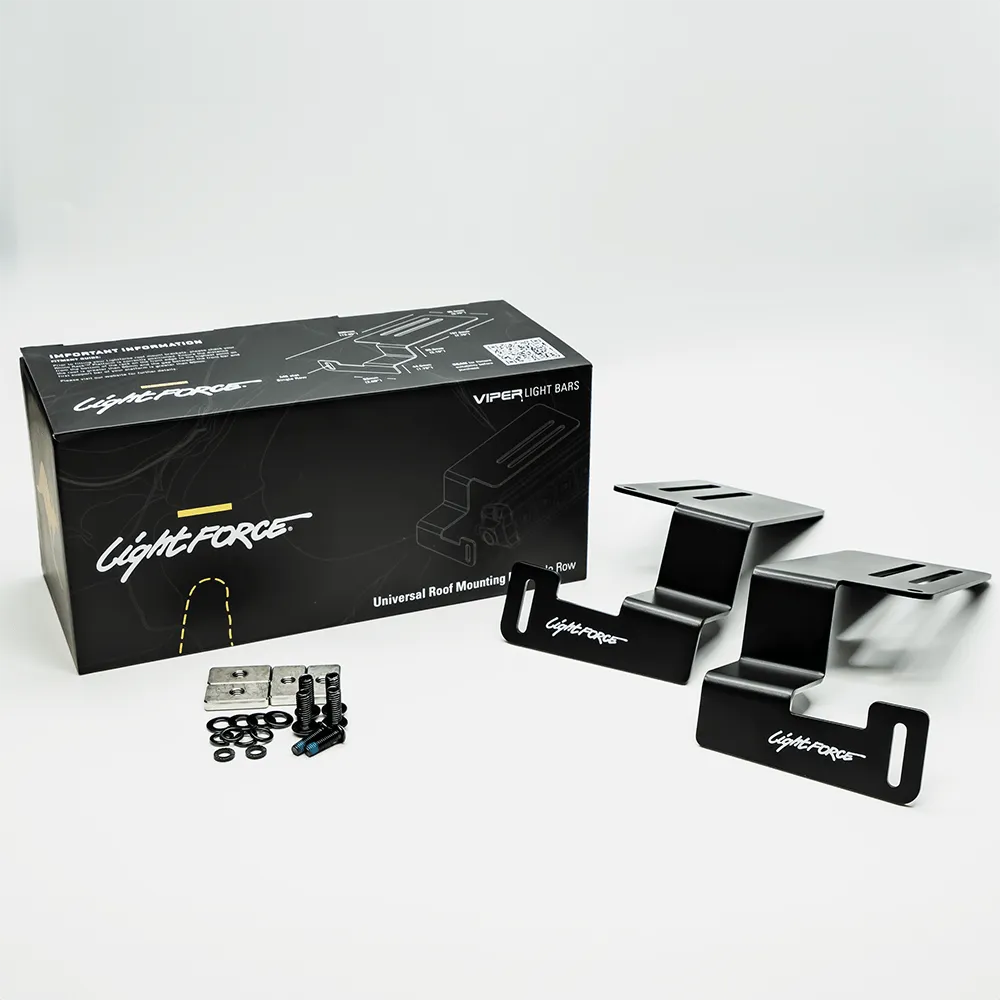

KIT CONTENTS

• 1 x Left side Light Bar underneath mounting bracket
• 1 x Right side Light bar underneath mounting bracket
• 4 x M8 x 20mm button head bolts
• 2 x M6 x 20mm button head bolts with pre-applied thread locker
• 2 x M6 Lock washers
• 4 x M8 Flat washers
• 4 x M8 Spring washers
• 4 x M8 Channel nuts
• 1 x Fitment guide

IMPORTANT INFORMATION

Fitment Guide:

Prior to fitting your Lightforce roof mount brackets, please check your Rhino Rack Platform is correctly positioned. Ensure the distance from the bottom of the rack on the front edge to the highest point on the roof is greater than 60mm and the gap between the front bar and the first support bar of your Platform is greater than 60mm.

Fitment Suitability:

Series 4 & 5 Rhino Rack Pioneer

North/South style platforms

NOT suitable for Series 6 Rhino Rack platforms

NOT suitable for any east/west style platforms
